This product is the latest crystal LED car emblem light on the market. Compared with original factory car emblems and other illuminated car emblem materials, this product has significantly improved performance and a superior texture. Regarding the emblem size, due to differences in measurement units in different regions, there may be errors when converting to millimeters. An error of approximately three millimeters will not affect use. If you are unsure of the size, please provide your car model and year, and we will match the appropriate size for you.
- Product name: LED streamer car logo light
- Product material: car logo flame retardant material
- Product function: controllable streamer effect
- Applicable car series: 90% brand (please note the model when purchasing)
- Installation method: replace the original car logo installation
Cadillac Illuminated Emblem – Installation Guide
-
Turn off the vehicle and disconnect the negative battery terminal before installation.
-
Carefully remove the original emblem. Access the mounting points from behind if necessary, and clean the mounting surface.
-
Test the illuminated emblem using a suitable 12V power source before securing it in place.
-
Position the new emblem and secure it using the supplied mounting clips or adhesive, depending on your version. Check the alignment before pressing it firmly into place.
-
For the version with red, white, and black wires:
• Connect the red and white wires together to a fused +12V supply.
• Connect the black wire to a suitable chassis ground.
• Use an ACC-switched supply if you want the emblem to light up when the ignition is on, or a suitable lighting supply if you want it to turn on with the lights.

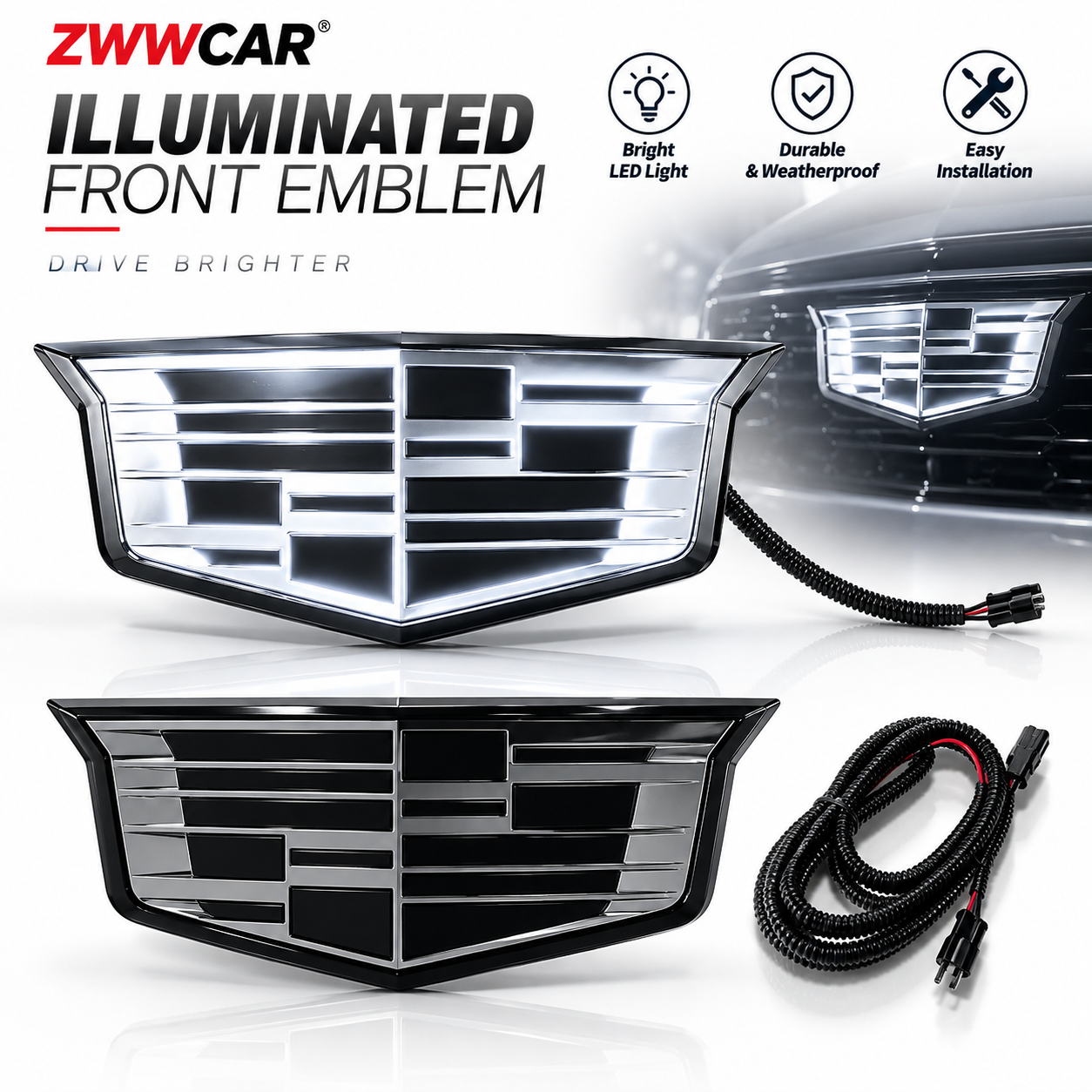

If your kit includes a plug-and-play harness, use the matching connector instead. If the wire colors differ, send us a photo before connecting them.
-
Secure the wiring away from hot surfaces, moving parts, and sharp edges. Protect all connections from moisture.
-
Reconnect the battery and test the emblem. For the animated version, a brief startup animation is followed by steady illumination.
Do not force the emblem into place or connect it to sensor wiring. If you need help, send us your Cadillac model, year, and photos of the emblem and wiring, and we’ll guide you through the installation.
📱Why choose us?
- 1. Free shipping, fast air transportation, no tariffs.
- 2. 30-day free trial, worry-free return and exchange!
- 3. Support dozens of payment methods such as credit cards and PayPal to ensure the safety of funds!
- 4. Real-time tracking of express information
💡How to change the car logo?
- Put a towel next to the LOGO (to avoid scratches) and pry off the old car logo with a screwdriver.
- Clean the area (residual glue, double-sided tape or dust, etc.).
- Run the power cable through the guide hole at the badge mounting location and into the engine compartment.
- Remove the backing from the illuminated badge and stick the badge to the car while pulling the wires and pressing tight.
- Connect the power cable from the badge light to the daytime running lights/battery/fuse box/headlight power supply, etc. according to your preference.
